Project /2021

San Miguel Technology Center

3D model and renders of a technology center, from an AutoCAD plan to final images.

Modeling and visualization Municipalidad de San Miguel

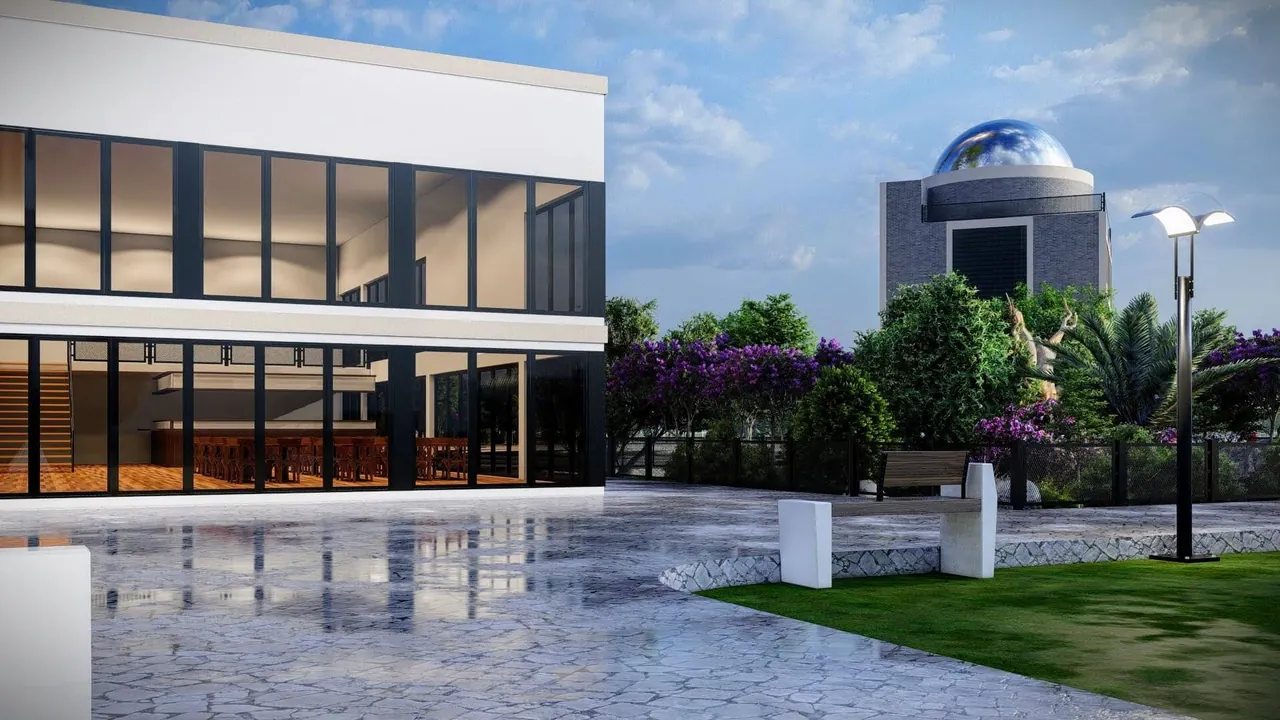

Daytime render of a glazed facade with a small dome behind.
Glazed facade by day.

What it is

A visual tour of San Miguel’s Technology Center. From an AutoCAD plan I built the full model and rendered it in daylight, at night and indoors.

What it does

  • 3D model of the buildings, facilities and surrounding areas.
  • Daytime and night exterior views, plus interiors.
  • A tool for planning, designing and presenting the project.

What I did

  • I turned an AutoCAD plan into a 3D model you can walk through.
  • I modeled the whole center in SketchUp: buildings, facilities and the entire surroundings.
  • I rendered in Lumion with daylight, at night and indoors, to tell the space from every angle.
  • The result was a tool to plan, design and present the project.

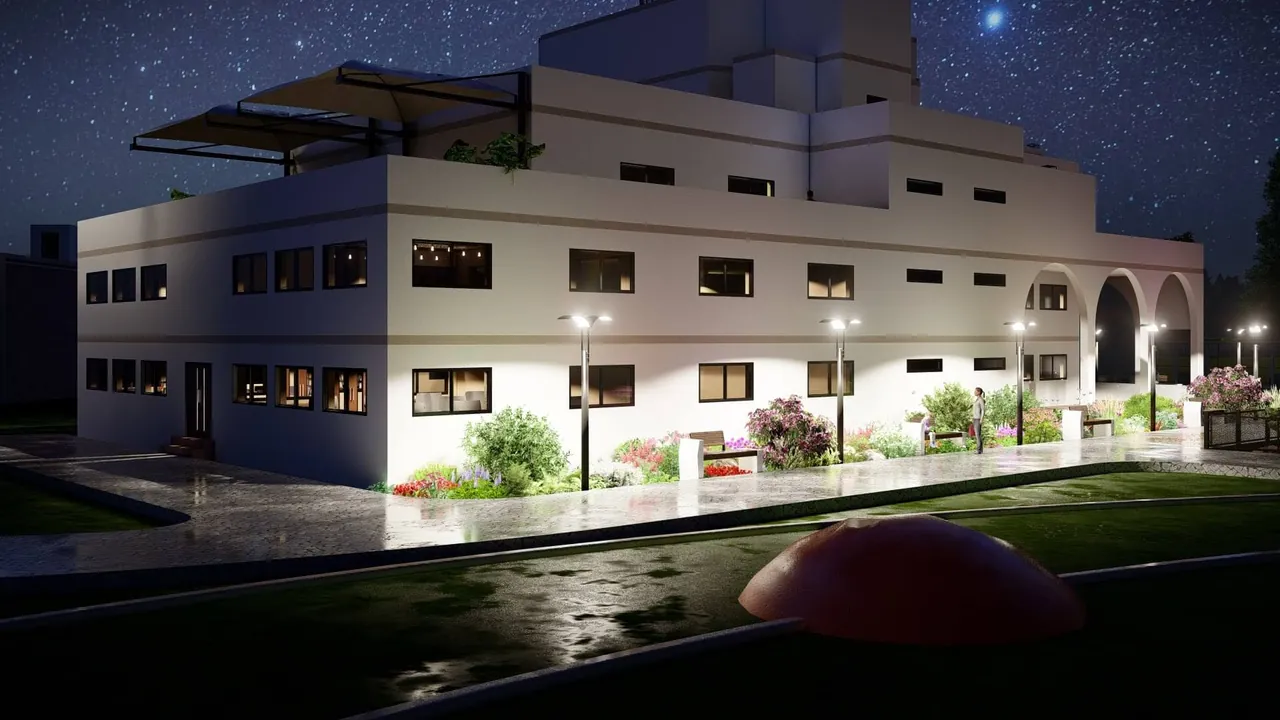

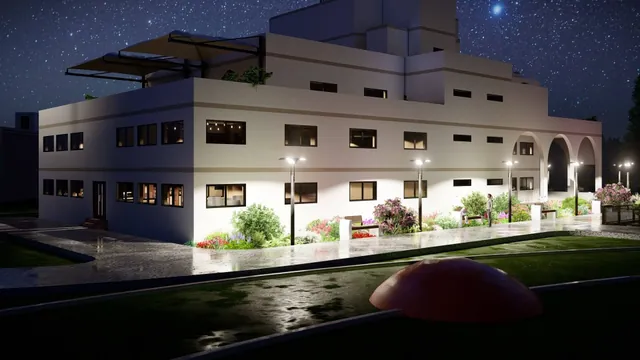

  • Night render of a lit white building with greenery.

    Night exterior view.

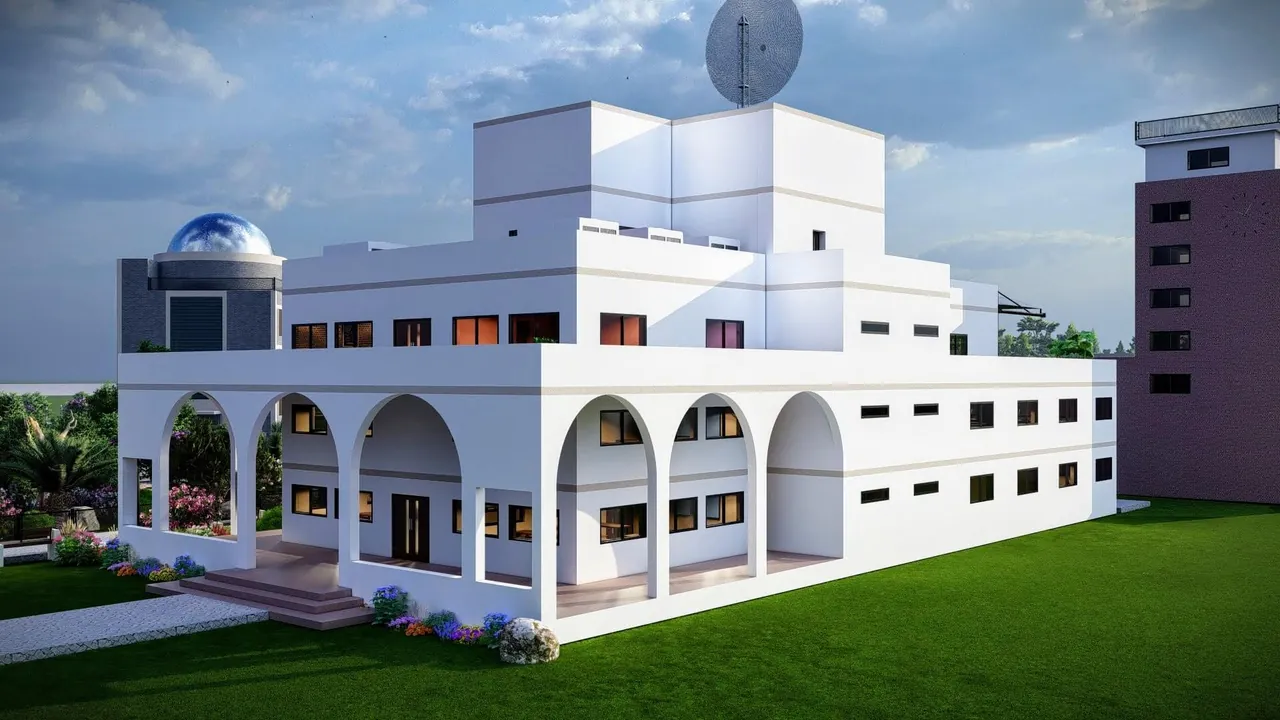

  • Daytime render of a white building with an arcade and a dome.

    Arcade and dome.

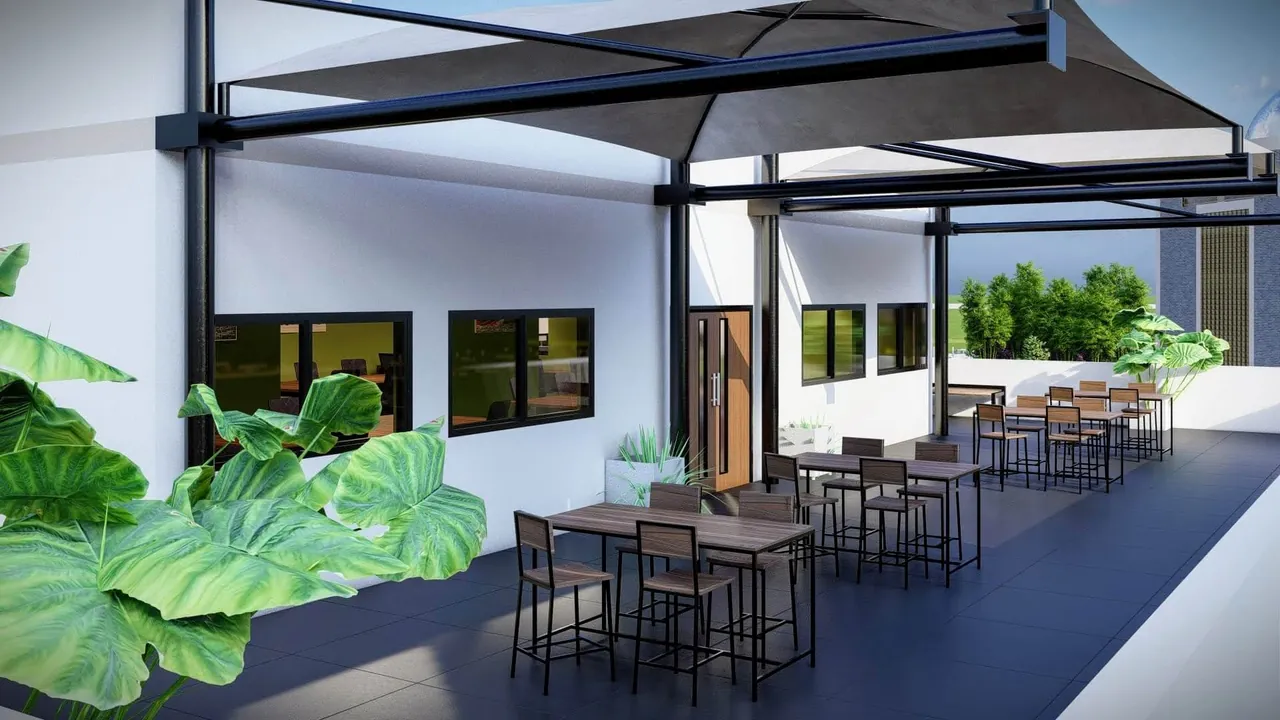

  • Render of a terrace with tables, a pergola and plants.

    The terrace.

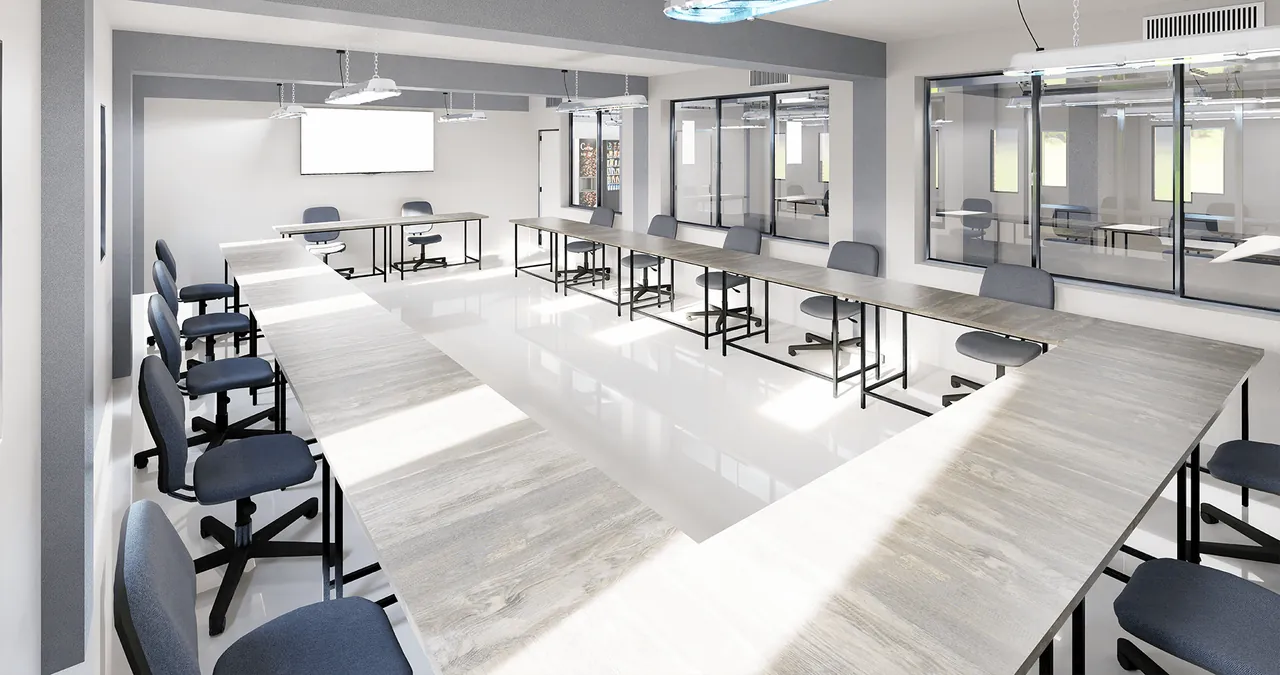

  • Interior render of a room with long tables and glass partitions.

    Interior: work room.
